About this item

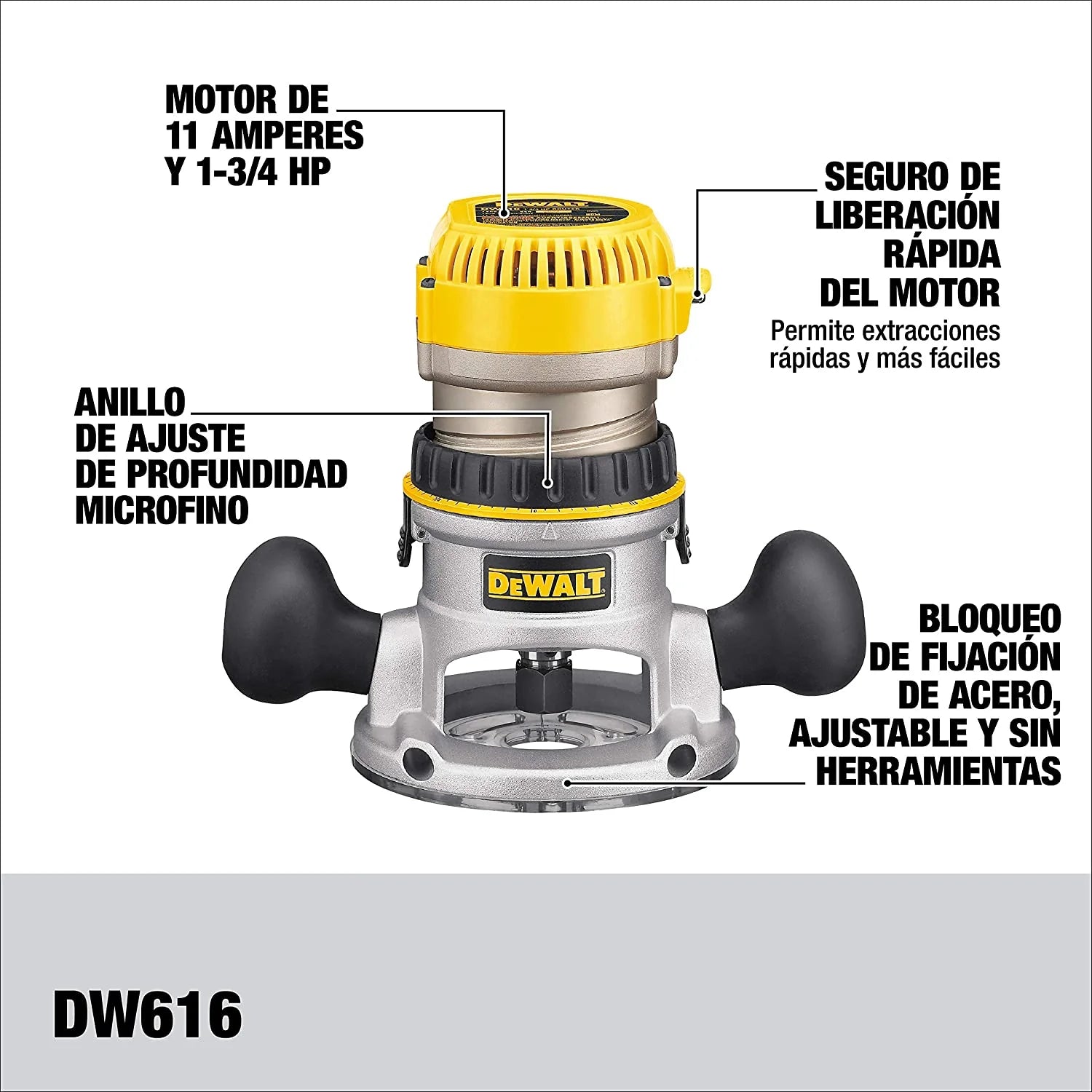

- 1-3/4-hp, 11-amp motor provides the power to rout smoothly through the toughest hardwoods
- Micro-fine depth adjustment ring provides precise depth adjustments in 1/64-inch increments
- Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
- Quick-release motor latches for fast and easy motor pack removal for bit and base changes
- Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
From the manufacturer

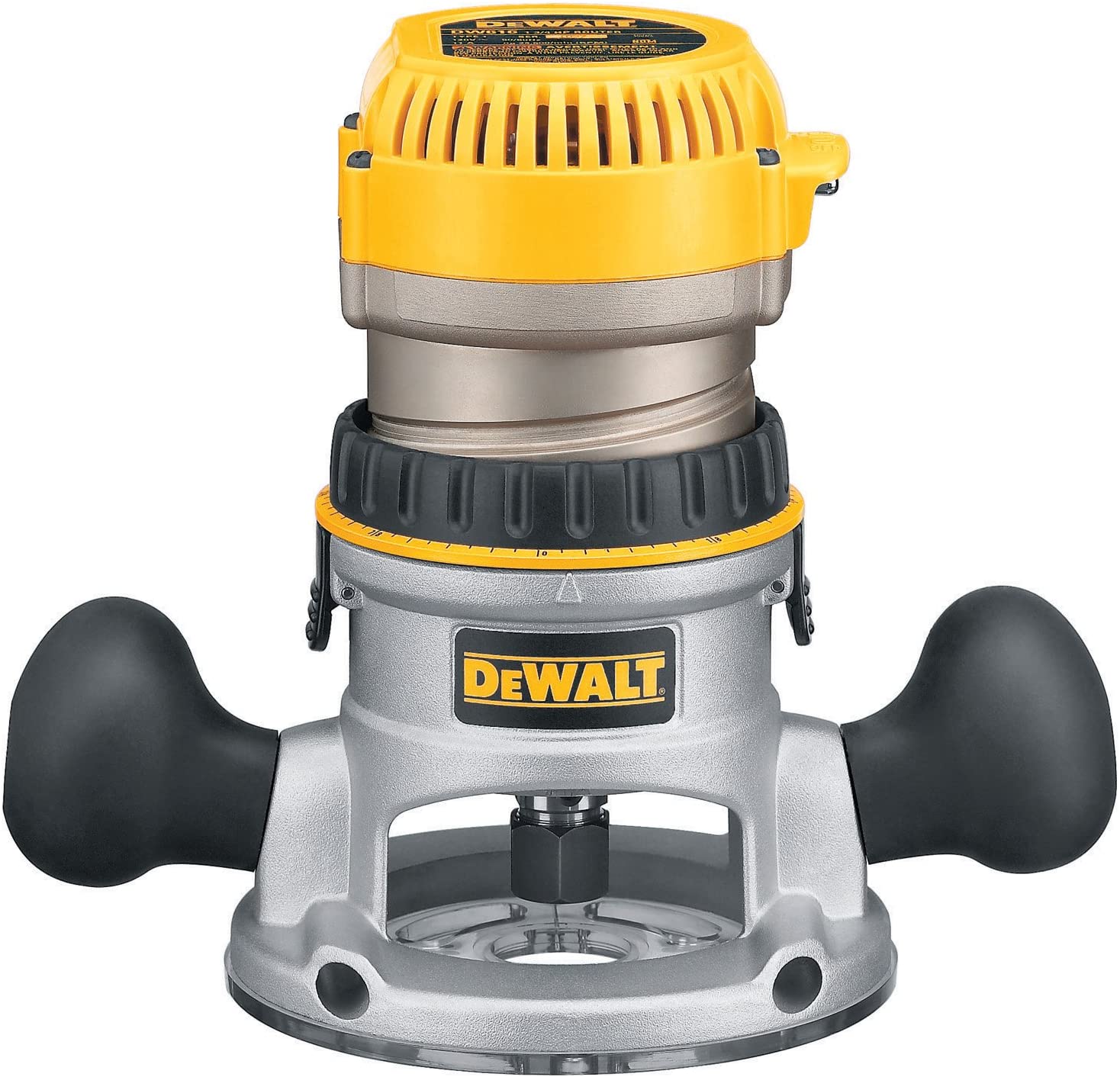

DW616 Fixed Base Router
1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods.
Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking.
Detachable cordset offers cordset serviceability and removes the need for a ��shorty�� cord motor pack.

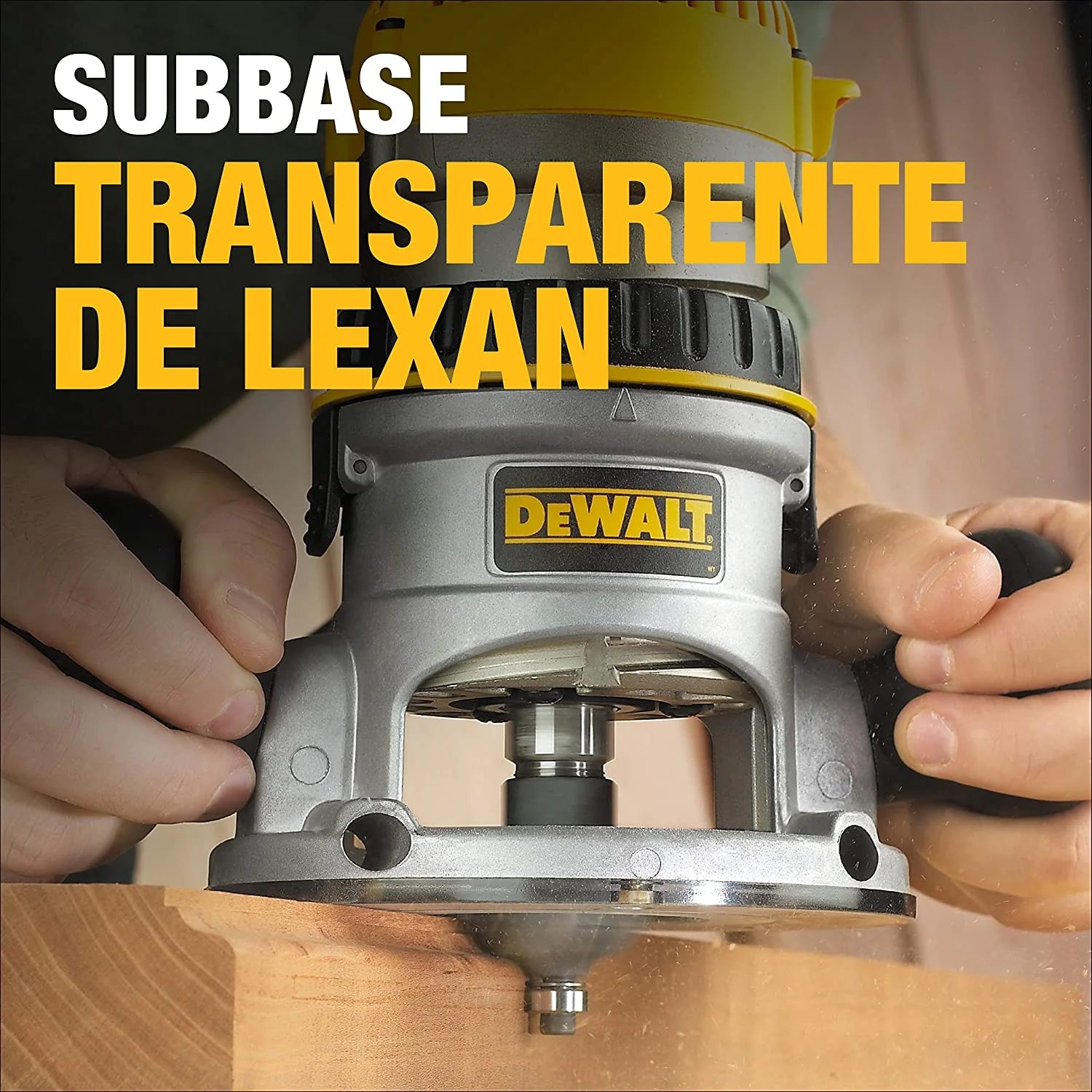

Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings.
Dust-Sealed Switch protects against dust ingestion for longer switch life.
Nickel plated motor housing for a smooth, long-lasting depth adjustment.
Fixed Base Router
Flat top for easy bit and depth changes.
Micro-fine depth adjustment ring provides precise depth adjustments in 1/64�� increments and adjusts vertically for a constant switch/cordset location.
Quick release motor latches for fast and easy motor pack removal for bit and base changes.
Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy.
Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control.

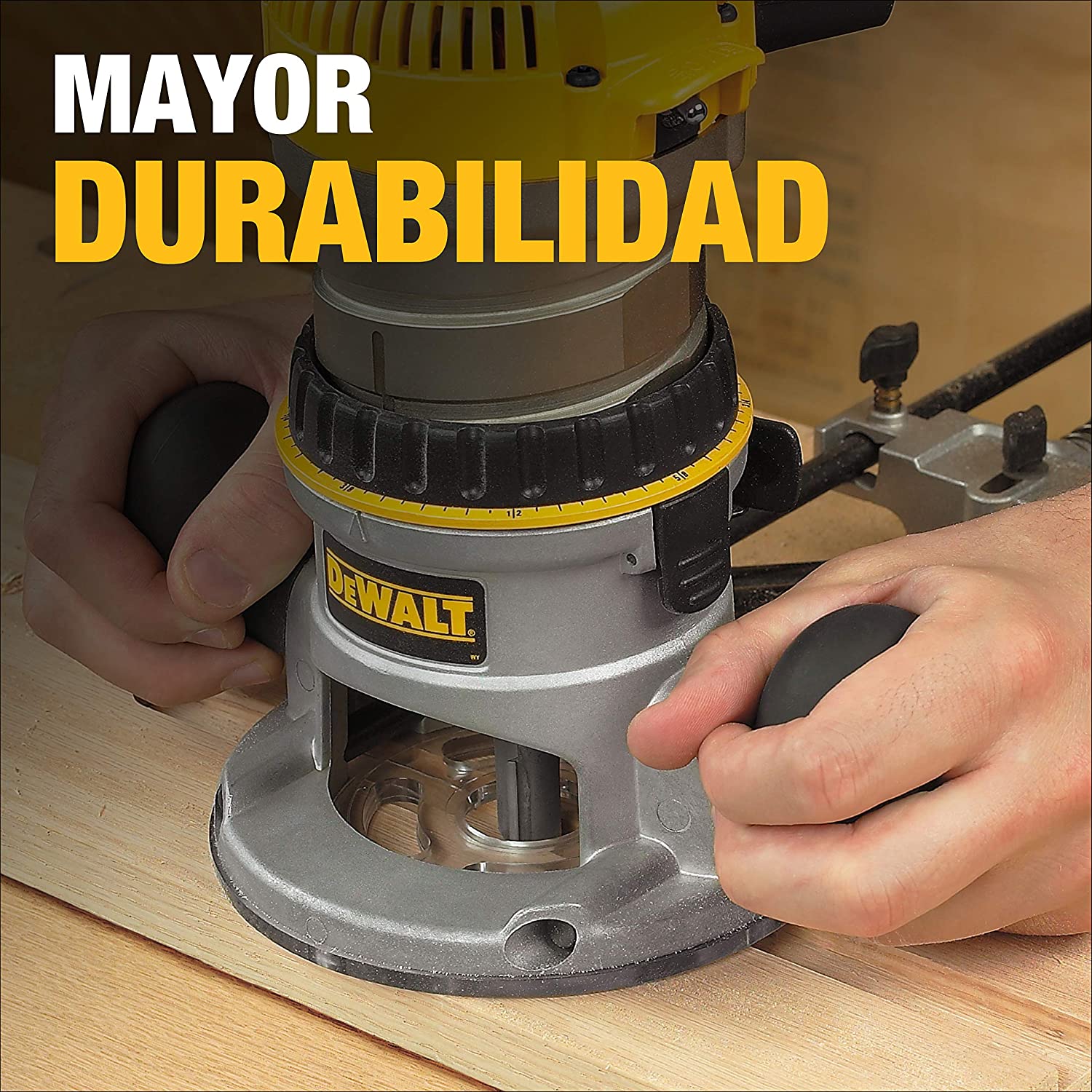

Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight.
Right or left switch and cordset location provides the ability to have the switch in your right or left hand.
|
|
|
|
|---|---|---|---|
Product Description
Product Description
Route and smooth even demanding hardwoods with the 1-3/4 horsepower DEWALT DW616 fixed base router, which provides a micro-fine depth adjustment ring provides for precise depth adjustments in 1/64-inch increments. And the adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking. Do not hand-hold the router in an upside-down or horizontal position
Route and smooth even demanding hardwoods with the 1-3/4 horsepower DEWALT DW616 fixed base router, which provides a micro-fine depth adjustment ring provides for precise depth adjustments in 1/64-inch increments. And the adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking.
The 1-3/4 horsepower DW616M motor pack
DW616 1-3/4-Horsepower Fixed Base Router
At a Glance:
- 1-3/4 horsepower, 11.0 Amp motor
- Adjustable, tool-free steel motor cam lock
- Precise depth adjustments in 1/64-inch increments
- Easily tackles even the toughest hardwoods
- Three-year limited warranty; one-year free service
Power and Performance
This kit��s DW616M 1-3/4 horsepower, 11 amp motor provides all the power, durability, and versatility required on professional job sites. A dust-sealed switch protects against dust ingestion for longer switch life, and the motor housing is nickel plated for a smooth, long-lasting depth adjustment.
With a micro-fine depth adjustment ring, you can count on accurate adjustment in 1/64-inch increments, while a clear, Lexan sub-base ensures durability, visibility, and the ability to accept standard template guide bushings. The included sub-base concentricity gauge enhances accuracy even further by helping you maintain bit concentricity, and long, eight-slot collets that are self-releasing provide excellent bit retention for dependability.
Comfort and Convenience
A steel motor cam lock and quick-release motor latches make adjustments and base changes tool-free, fast and easy when you need to switch tasks, and a unique, detachable cordset helps keep this tool easy to service. The over-molded, rubber handles and well-balanced body will keep you working comfortably for hours. The unique switch and cordset configuration allows you to keep the switch in your right or left hand, and a flat top further increases to ease of bit and depth changes.
Warranty
This DEWALT tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). It��s also covered by DEWALT��s one-year free service contract, where DEWALT will maintain the tool and replace worn parts caused by normal use��for free.
What��s in the Box

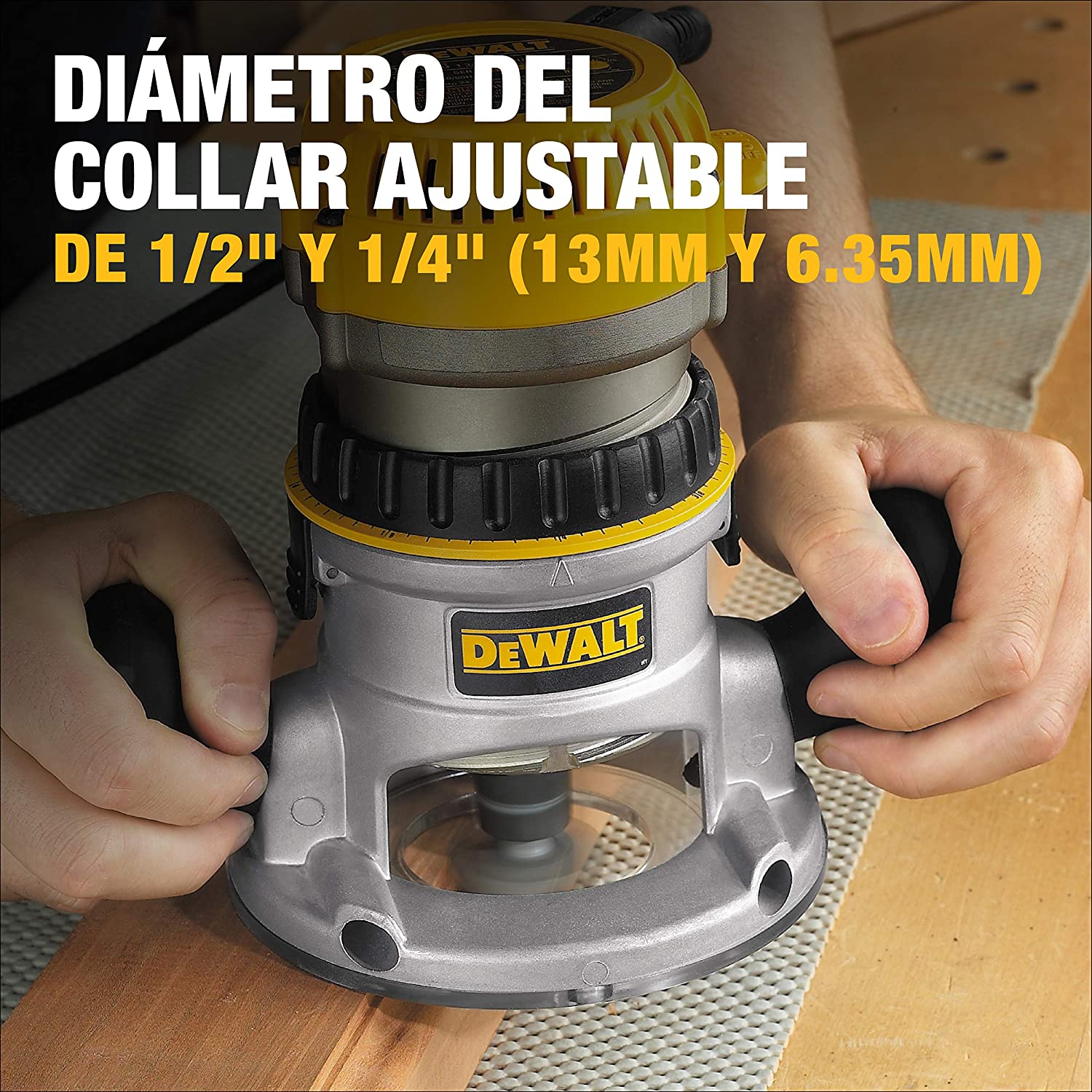

DEWALT DW616 fixed base router with DW616M motor pack; DW6184 fixed base; 1/4- and 1/2-inch collets, sub-base concentricity gauge; two wrenches; operating instructions
Micro-fine depth adjustment ring provides precise depth adjustments in 1/64-inch increments .
